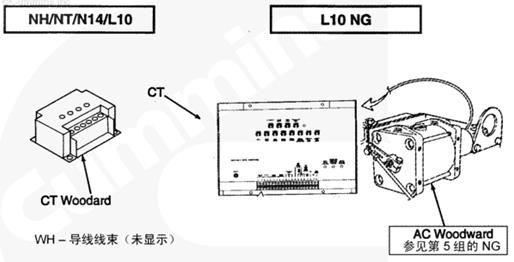

Failure Code Details

部件代碼

Component Description

故障模式

CT

Woodward™ 1712/1724 控制器

AW BR CU ID MA SR UN

IA

初始調整/控制器（未顯示）

NF

WH

康明斯導線線束（未顯示）

BE CO MA SR

Failure Code Details

部件代碼

Component Description

故障模式

BS

制動器開關

AW BR CO ID MA MM SR WP

CA

離合器開關促動連桿

AW BE BR MA MM WO

CB

離合器開關支架

BR MA MM WP

CN

接頭

BE BR ID MA MM SR WO WP

IA

巡航設置/恢復開關

BR BU HR MA OC SC SE SR WO WP

IB

排氣制動 ON/OFF 開關

BR BU HR MA OC SC SE SR WO WP

IC

巡航 on-off 開關

BR BU HR MA OC SC SE SR WO WP

ID

怠速增加/降低開關

BR BU HR MA OC SC SE SR WO WP

IE

離合器開關

BR BU HR MA OC SC SE SR WO WP

IF

發動機制動選擇器開關

BR BU HR MA OC SC SE SR WO WP

IG

行車制動開關（未顯示）

BR BU HR MA OC SC SE SR WO WP

IH

發動機制動繼電器（未顯示）

BR BU HR MA OC SC SE SR WO WP

LL

指示燈

BR CU MA MM OC WP

MH

離合器開關安裝緊固件

BE BR MA MM WP

PN

觸針

BE BR BU CO MA SR WO WP

SE

密封件

BR CU LW MA MM WO WP

TB

康明斯油門支架

BE BR MA MM WO

TS

康明斯油門開關

AW BR CO DR ID MA MM SE SR WO

UA

備用扭矩開關

BR BU HR MA MM OC SR WO WP

UB

備用調速率開關

BR BU HR MA MM OC SR WO WP

UC

中間轉速開關

BR BU HR MA MM OC SR WO WP

UD

開關有效開關

BR BU HR MA MM OC SR WO WP

UE

備用低怠速開關

BR BU HR MA MM OC SR WO WP

UF

輔助驅動器輸出

BR BU HR MA MM OC SR WO WP

UG

機油壓力傳感器

BR BU HR MA MM OC SR WO WP

UH

冷卻液溫度傳感器

BR BU HR MA MM OC SR WO WP

UJ

機油溫度傳感器

BR BU HR MA MM OC SR WO WP

UO

OEM 控制模塊

BR BU HR MA MM OC SR WO WP

Failure Code Details

部件代碼

Component Description

故障模式

HB

C5 和 C6 接頭支架

AT MA MM WP

HC

C5 和 C6 接頭夾子

BE BR MA MM

HD

接頭夾子安裝件

BE BR CU MA MM WP

HH

支架安裝硬件

BE BR CU MA MM WP

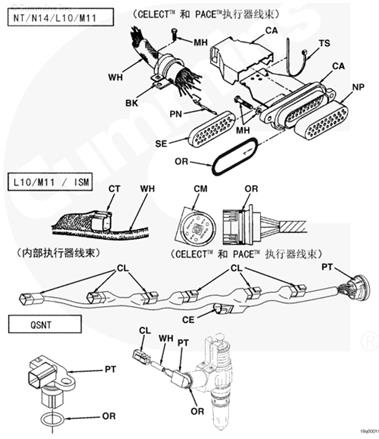

Failure Code Details

部件代碼

Component Description

故障模式

BK

支架

BR MA MM WP

CA

AMP 接頭

BR BU ID MA MM OC SR WO WP

CD

Deutsch 接頭

BR BU ID MA MM OC SR WO WP

CE

橫隔板接頭（未顯示）

BR BU ID MA MM OC SR WO WP

CL

Deutsch 鎖環

BR MA MM

CN

Weatherpack 接頭

BR BU ID MA MM OC SR WO WP

MH

安裝緊固件

BE BR MA MM WP

NP

接頭管口

BR ID LW MA MM WO WP

OR

O 形密封圈

BR BU LO MA MM WO WP

PB

橫隔板接頭觸針（未顯示）

BE BR CO MA MM OC SR WO WP

PD

Deutsch 接頭觸針

BE BR CO MA MM OC SR WO WP

PN

amp 接頭觸針

BE BR BU CO MA MM OC SR WO WP

PW

Weatherpack 觸針

BE BR CO MA MM OC SR WO WP

SA

Deutsch 接頭密封件

BR CU ID LW MA MM WO WP

SB

橫隔板接頭密封件（未顯示）

BR BU ID MA MM OC SR WO WP

SE

amp 接頭密封件

BR ID LW MA MM WD WP

SL

Weatherpack 接頭密封件

BE BR BU CO MA MM OC SR WO WP

TS

搭接板

BR BU MA MM WO

WH

康明斯導線線束

BR CU HR ID MA MM OC SR WO WP

Failure Code Details

部件代碼

Component Description

故障模式

CD

deutsch

BR BU ER ID MA MM WO WP

WH

康明斯導線線束

BE BR CO HR LR MA OC SR WO WP

Failure Code Details

部件代碼

Component Description

故障模式

MH

安裝緊固件

BE BR MA MM WP

PT

貫穿式

BR BU ID MA MM OC SR WB WP

TS

搭接板

BR BU MA MM WP

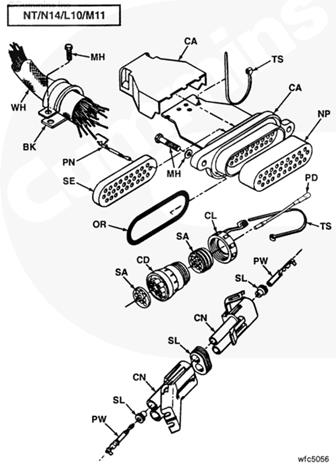

Failure Code Details

部件代碼

Component Description

故障模式

BK

安裝支架

BR MA MM WP

CA

AMP 接頭

BR BU ID MA MM OC SR WO WP

CD

Deutsch 接頭

BR BU ID MA MM OC SR WO WP

CL

Deutsch 鎖環

BR MA MM

CN

Weatherpack 接頭

BR BU ID MA MM OC SR WO WP

MH

安裝緊固件

BE BR MA MM WP

NP

接頭管口

BR ID LW MA MM WO WP

OR

o 形圈

BE ID LW MA MM WO WP

PD

Deutsch 觸針

BE BR CO MA MM OC SR WO WP

PN

amp 接頭觸針

BE BR CO MA MM OC SR WO WP

PW

Weatherpack 觸針

BE BR CO MA MM OC SR WO WP

SA

Deutsch 密封件

BR CU ID LW MA MM WO WP

SE

amp 接頭密封件

BR ID LW MA MM WO WP

SL

Weatherpack 密封件

BR CU ID LW MA MM WO WP

TS

搭接板

BR BU MA MM WO

WH

康明斯導線線束

BR CU HR MA MM OC SR WO WP

Failure Code Details

部件代碼

Component Description

故障模式

CM

控制模塊

BR BU CO ID MA MM WP

HC

線束接頭

BR BU ER ID MA MM OC SR WO WP

MH

安裝硬件

BR CO MA MM SE WP

WH

康明斯導線線束

BR BU MA MM MW OC SR WO WP

Failure Code Details

部件代碼

Component Description

故障模式

EB

傳感器體

AW BR CA HR ID LE LR MA MM OC SR WP

EW

康明斯導線線束

BR HR ID MA MM OC SR WO WP

IC

接頭

BR BU CO ID MA MM WO WP

IM

接口模塊

BR BU CO ID MA OC SR

Failure Code Details

部件代碼

Component Description

故障模式

EB

傳感器體

AW BR CA HR ID LE LR MA MM OC SR WP

EW

康明斯導線線束

BR HR ID MA MM OC SR WO WP

IC

接頭

BR BU CO ID MA MM WO WP

IM

接口模塊

BR BU CO ID MA OC SR

Failure Code Details

部件代碼

Component Description

故障模式

EB

傳感器體

AW BR CA HR ID LE LR MA MM OC SR WP

EW

康明斯導線線束

BR HR ID MA MM OC SR WO WP

IC

接頭

BR BU CO ID MA MM WO WP

IM

接口模塊

BR BU CO ID MA OC SR

AM

氨傳感器模塊

AW BR CA HR ID LE LR MA MM OC SR WP

AP

傳感器體

AW BR CA HR ID LE LR MA MM OC SR WP

IC

接頭

BR BU CO ID MA MM WO WP

MH

安裝硬件

BE BR CU MA MM WP
